HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
| Place of Origin | China |
|---|---|
| Hàng hiệu | HCW |
| Chứng nhận | CE |
| Model Number | CW219 |
| Minimum Order Quantity | 2 piece |
| Giá bán | có thể đàm phán |
| Packaging Details | wooden case |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Model | CW219 | Power supply | AC220V±10%，50Hz |
|---|---|---|---|
| Working temperature | -35℃~+70℃ | Application | Roadway Safety |
| Size | 340*245*970mm | Motor | DC brush-less |
| Motor power | 150W | Length | 6m |
| Làm nổi bật | 150W Motor Power Parking Barrier Gate,Fast Lifting Speed Boom Barrier Gate,Stable Barrier Movement Automatic Barrier Gate |
||
Mô tả sản phẩm
HCW Parking Barrier Gate with Digital Control and Remote Operation

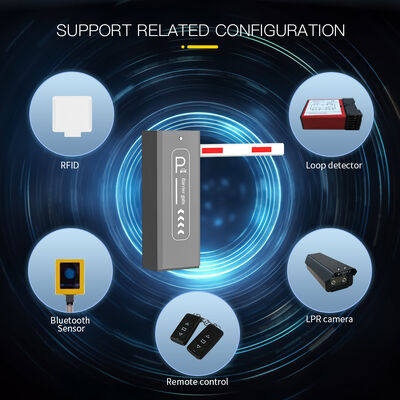

Barrier Gate RFID Security Smart Wireless Remote Control Expandable For Parking Lot Use
The CW219 is our sixth-generation DC brushless electric barrier gate, designed for fast lifting speed and stable operation. This advanced system features digital control technology for intelligent barrier management and supports wireless remote control operation.
Product Features
- Digital control technology monitors the entire operation process
- Wireless remote control for gate operation (lift, drop, stop)
- Manual button operation available
- Supports brand OEM processing
- Exported to international markets
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | CW219 |
| Motor | DC brushless |
| Power Supply | DC24V 150w |
| Material | Cold Rolled Steel |
| Surface Treatment | Galvanized + Powder Coated |
| Thickness | 1.5mm |

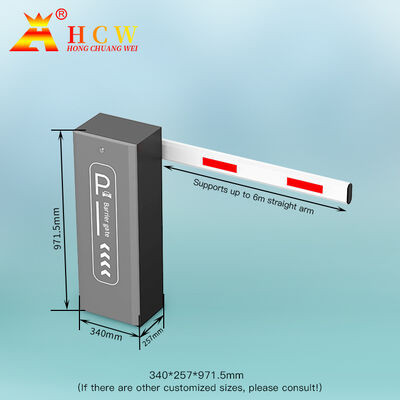

| Size | 340*245*971.5mm |
| Working Environment | -40℃~+80℃ |
| Available Poles | Straight arm, folding arm, fence boom, Foam rod |
| Support Length | Straight arm≤6m, fence boom≤4.5m |
| Foldable Rod Types | 90° and 180° |
| Lift/Drop Time | 1~6s (Adjustable) |
| Noise Level | <50db |
| Protection Features | Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection |
Key Advantages
- Wireless remote control operation (rise, drop, stop)
- Operates reliably in extreme temperatures (-40℃ to +80℃)

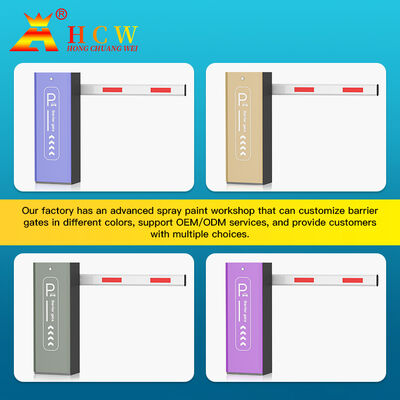

- Customizable colors and sizes available
- Anti-collision function protects the pole from damage
- Four pole options: Straight, fence, telescopic, and 90° folding
Equipment Functions
- High-quality material lifter with 5 million cycle capability
- High-temperature resistant springs with superior elasticity
- High-density control board compatible with various management systems
- Adjustable operating speed (1.5s to 6s) based on boom length
- Manual adjustment capability for power outage situations
