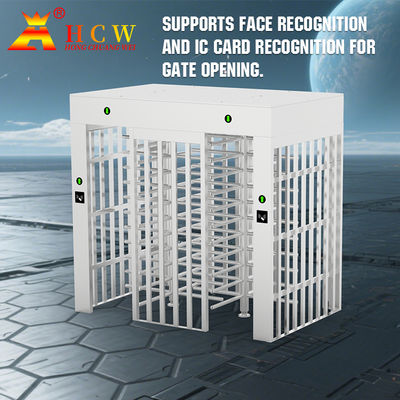

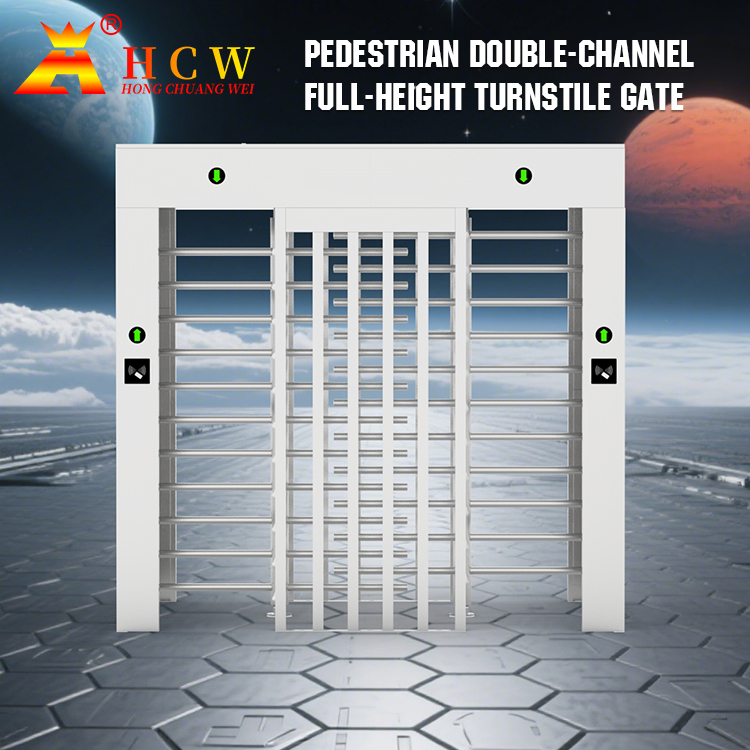

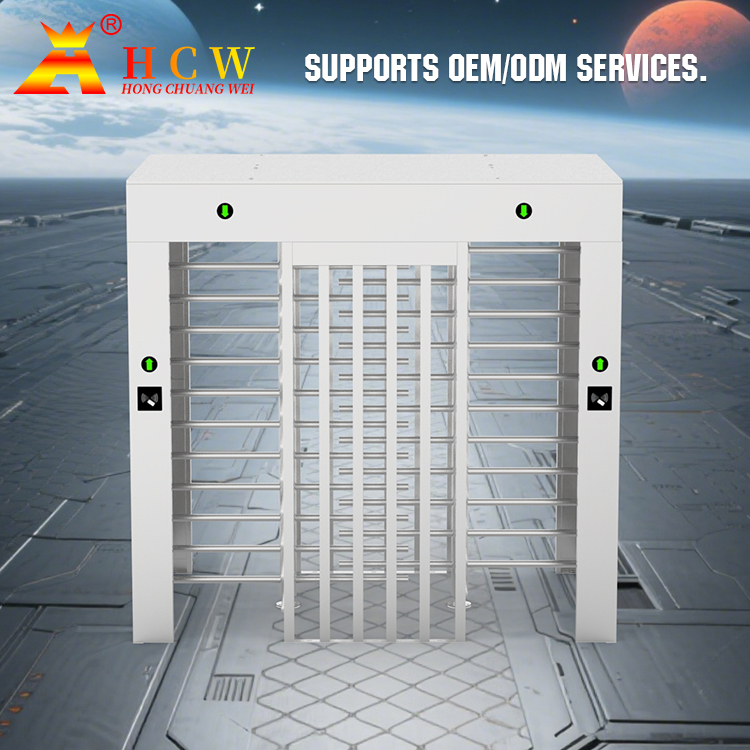

HCW Bi Directional Full Height Turnstile Gate With Fingerprint Pedestrian Entrance Security

The HCW CW802-2 is a high-performance full-height turnstile gate engineered for demanding access control applications. Constructed from robust 304 stainless steel with a 1.2mm thickness, it delivers exceptional durability and corrosion resistance. Designed to operate reliably in environments with temperatures ranging from -25℃ to +70℃ and relative humidity ≤90% non-condensing, this gate ensures consistent performance under challenging conditions. Its DC24V motor enables smooth 90° rotation, resulting in low noise, no mechanical shock, and more stable operation. With a 600mm passage width, it facilitates efficient flow at a rate of up to 40 persons per minute. The inclusion of RS232/RS485 interfaces allows for seamless system integration, while ISO 9001 and CE certifications—backed by a one-year warranty—guarantee quality and compliance. This turnstile combines superior security with quiet, dependable functionality.

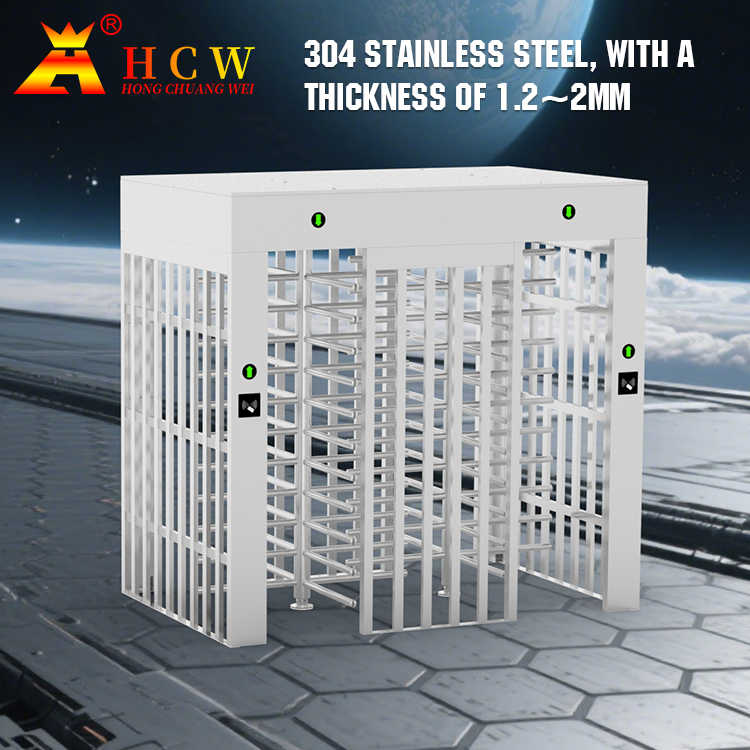

1. Robust Construction for Longevity – As an SS304 pedestrian turnstile gate, it is built with high-grade stainless steel and a 1.2mm thickness, ensuring exceptional corrosion resistance and structural integrity for long-term use in both indoor and outdoor settings.
2. Enhanced Safety and Compliance – This CE barrier turnstile gate is manufactured to meet stringent international standards, guaranteeing user safety and reliable operation. Its full-height design provides a strong physical and psychological deterrent against unauthorized access.
3. Stable and Versatile Power Adaptation – The gate operates on a wide voltage range of AC220V±10%, 50/60HZ, ensuring consistent and stable performance despite potential fluctuations in power supply, which is ideal for regions with unstable grid conditions.
4. Durable and Corrosion-Resistant Finish – The surface of the movement is electroplated with white zinc acid, which is rust-proof and durable. This special treatment significantly enhances the lifespan of the mechanical components, ensuring smooth operation even in humid environments.
5. Efficient and Secure Access Management – This swipe turnstile gate access system facilitates efficient pedestrian flow with a capacity of 40 passages per minute. It supports integration with various credential readers (via RS232/RS485) for secure and streamlined access control.

1. Residential Access Control – This turnstile is ideal for managing the entrance and exit of residential pedestrian passages. It ensures only authorized residents and visitors gain entry, enhancing community safety while its durable stainless-steel construction offers long-term reliability in daily use.

2. High-Security Facilities – Well-suited for stringent environments such as prisons, government buildings, or secured compounds, the gate provides a physical and psychological deterrent. Its robust design and access integration capabilities help enforce strict movement control and prevent tailgating.

3. Industrial and Construction Sites – The turnstile excels in regulating access at construction site corridors or industrial parks. Its ability to operate in harsh conditions (from -25°C to +70°C) and resist humidity and dust makes it perfect for managing worker flow and improving on-site security.
